1. Product Introduction

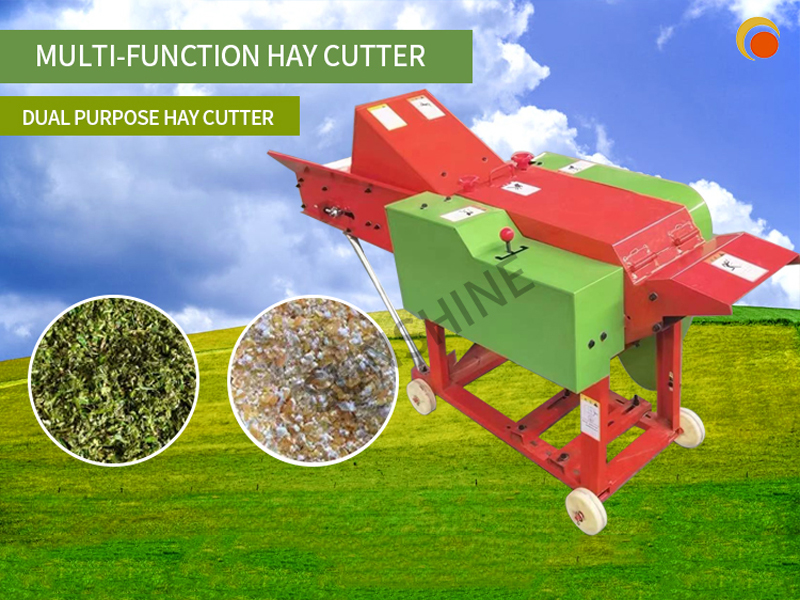

SUNSHINE Industrial Multifunctional Grass Chopper is equipped with a flywheel. When the main shaft speed reaches 1500 revolutions per minute, the flywheel can store enough energy to help the smaller power to complete the normal grass chopping and crushing work.

2. Machine Performance Parameters Machine Model

Steel Plate 9FZ-400 Model Matching Motor: 2.2kw-3kw 220V Rotor Speed: 2800r/min Machine Output: 350-600kg/hour (Specific output depends on the size of the screen) Machine Volume: 70*80*110 Machine Weight: 45 kg (This weight does not include the weight of the motor)

3. Uses and Features

This series of grass crushers can process orange stalks, cotton stalks, bean oranges, wheat oranges, forage grass and other forage grasses as well as various grains. It can also crush corn cobs for friends who grow practical fungi such as oyster mushrooms. This series of forage crusher has the characteristics of chopping, kneading and crushing. The new high-spray 400 can throw the material 2-5 meters away when chopping, improving the shortcomings of the old model that requires frequent unloading. This series of forage crusher has the characteristics of chopping, kneading and crushing. It is an ideal equipment for large, medium and small farms and family-raised pigs, cattle, sheep, poultry and other feeding.

IV. Structure and working principle

1. The machine consists of an upper shell, a lower shell, a discharge port, a feed hopper, an angle steel frame, a hammer, a cutter, etc.

2. When crushing, the coarseness of the crushed material is controlled by the size of the sieve hole, and different screens can be replaced.

3. When chopping grass alone, the screen can be pulled out.

V. Installation and debugging

1. The machine should be installed on a flat and solid site when working.

2. Equip and install the motor according to the requirements.

3. Before installing the belt, check whether the rotation direction of the indexing power is consistent with the cutting direction of the grass mower. After confirming that it is correct, adjust the installed belt and make it appropriately tight.

4. Before starting, check and adjust the gap between the moving and fixed knives of the grass mower to control the gap adjustment to less than 0.8 mm without collision, and then tighten the bolts.

5. After all parts are adjusted normally and confirmed to be correct, turn on the power for trial operation, check whether the fasteners of each part are loose, and whether there are abnormal sounds in each rotating part.

VI. Safe operation and maintenance

1. Before starting the machine, you must read the instruction manual carefully, and adjust and maintain it according to its fixation. The operator must master the structure and functional requirements of the machine.

2. The supporting power must meet the requirements, and it is not allowed to increase the spindle speed without permission.

3. Before starting the machine, check whether the running direction is the same as the cutting direction, otherwise it is strictly forbidden to start the machine.

4. Metal, stone and other hard objects must not be mixed into the materials to be cut, otherwise the machine will be damaged.

5. After the machine is started for a few hours, it is necessary to observe whether the parts are loose, and the bearings must be regularly filled with butter.

6. When feeding materials, the operator's hands are strictly prohibited from approaching the blade to avoid personal injury accidents. The feeding should be uniform and appropriate, not too much or too little, fast or slow.

7. It is strictly forbidden to work after drinking, being sick, or being overly tired. It is strictly forbidden to wear gloves, mentally retarded people, teenagers under 18 years old, people over 60 years old, and people who have not mastered the rules of using the grass cutter.

8. During work, if grass blocking and other faults are found, the power should be turned off immediately, and the operation should be carried out after the fault is eliminated. It is strictly forbidden to operate the machine with a fault.

9. Non-staff members who are not familiar with the performance of the machine mechanism shall not start the machine at will. 10. When the machine is not used for a long time, it should be stored indoors or in a shed to prevent the machine from rusting. Note: For this machine, the crushing fineness is determined by the size of the sieve hole. Users can choose the screen reasonably according to the particle size requirements of the feed.
